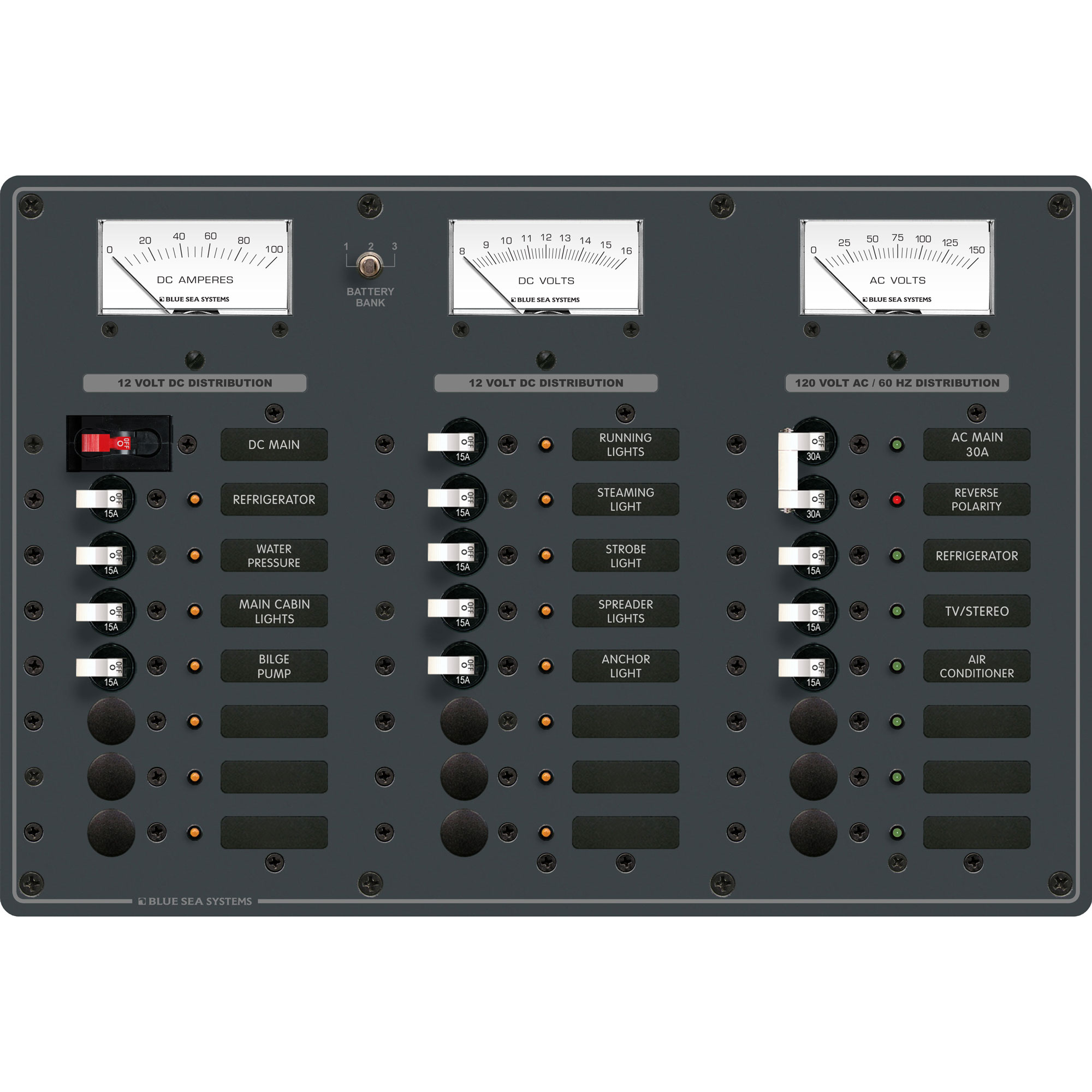

BS8084 Blue Sea Breaker Panel AC Main + 6 Positions/DC Main + 15 Positions

BS8084 Blue Sea Breaker Panel AC Main + 6 Positions/DC Main + 15 Positions

40-411-35079

Prix détail / Retail Price

CA $1839.95

Statut d'inventaire / Inventory Status

Commande spéciale 2-4 semaines

Special Order 2-4 weeks

Qty:

Description

Description

All AC and DC buses installed and fully pre-wired
Label backlighting pre-installed
ON - indicating LEDs installed in all circuit positions
100 Ampere C-Series Toggle Circuit Breaker provides main circuit protection and switching for DC branch
Maximum panel amperage - 100 Amperes DC, 50 Amperes AC
MIL-C5541C or equivalent immersion undercoating for lifetime corrosion resistance
Two-part polyurethane slate gray finish
Heavy 1/8" aluminum 5052 alloy
Detailed installation instructions and cutout template included
Countersunk mounting holes throughout
Includes set of 60 common AC and DC Large Format Labels
Over 500 individual labels available
