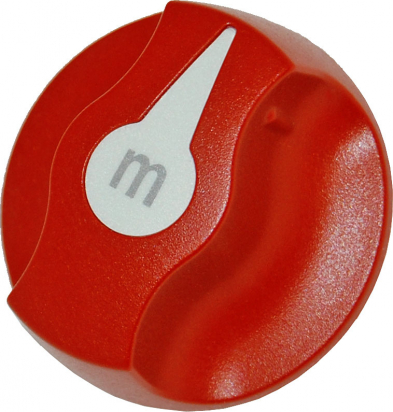

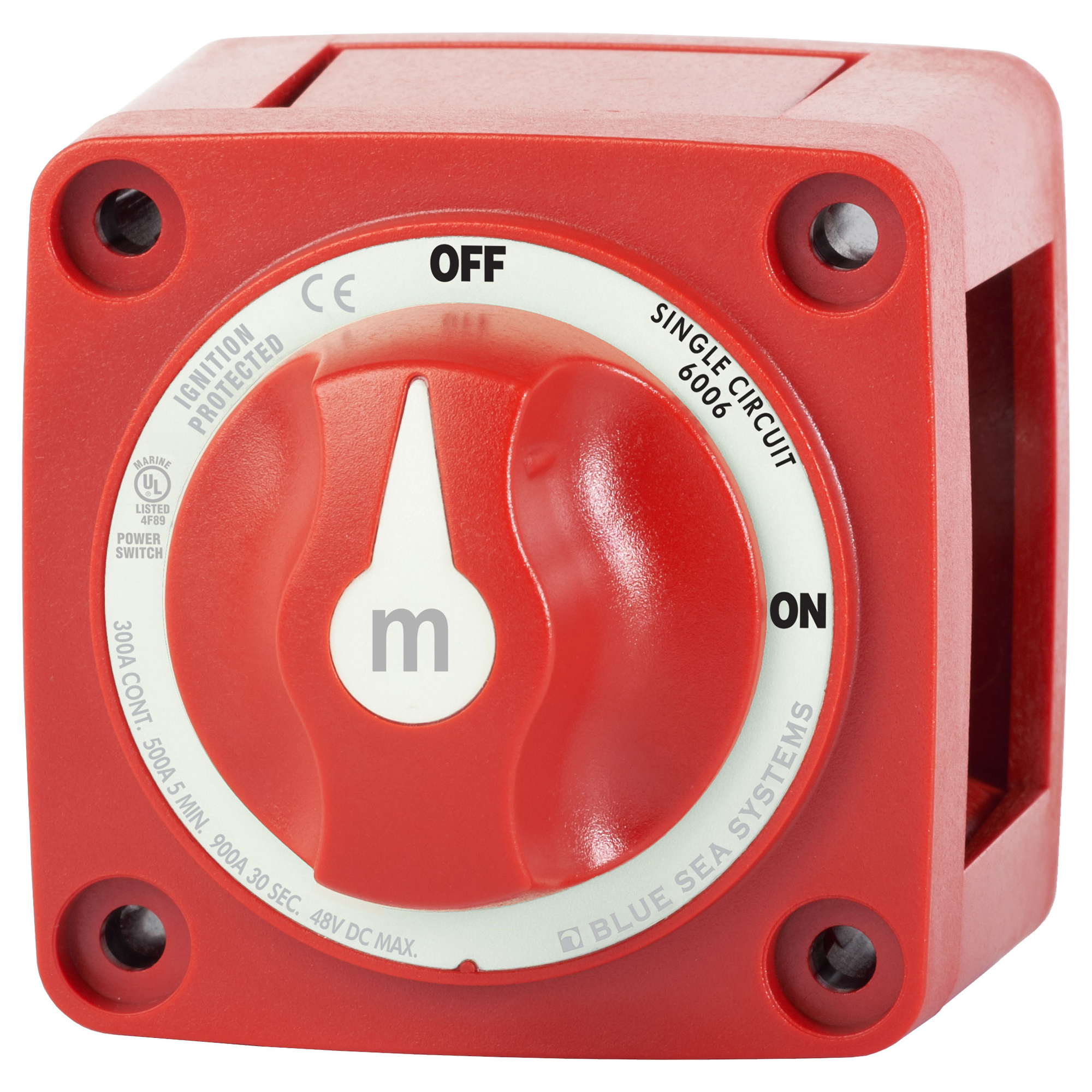

BS6006 m-Series Mini On-Off Battery Switch with Knob - Red

BS6006 Switch battery M-series on/off w/knob

The BS6006 switches a single battery to a single load group. Safe for outboard motors as well as small gasoline or diesel engines with ignition protection.

Safe and durable!

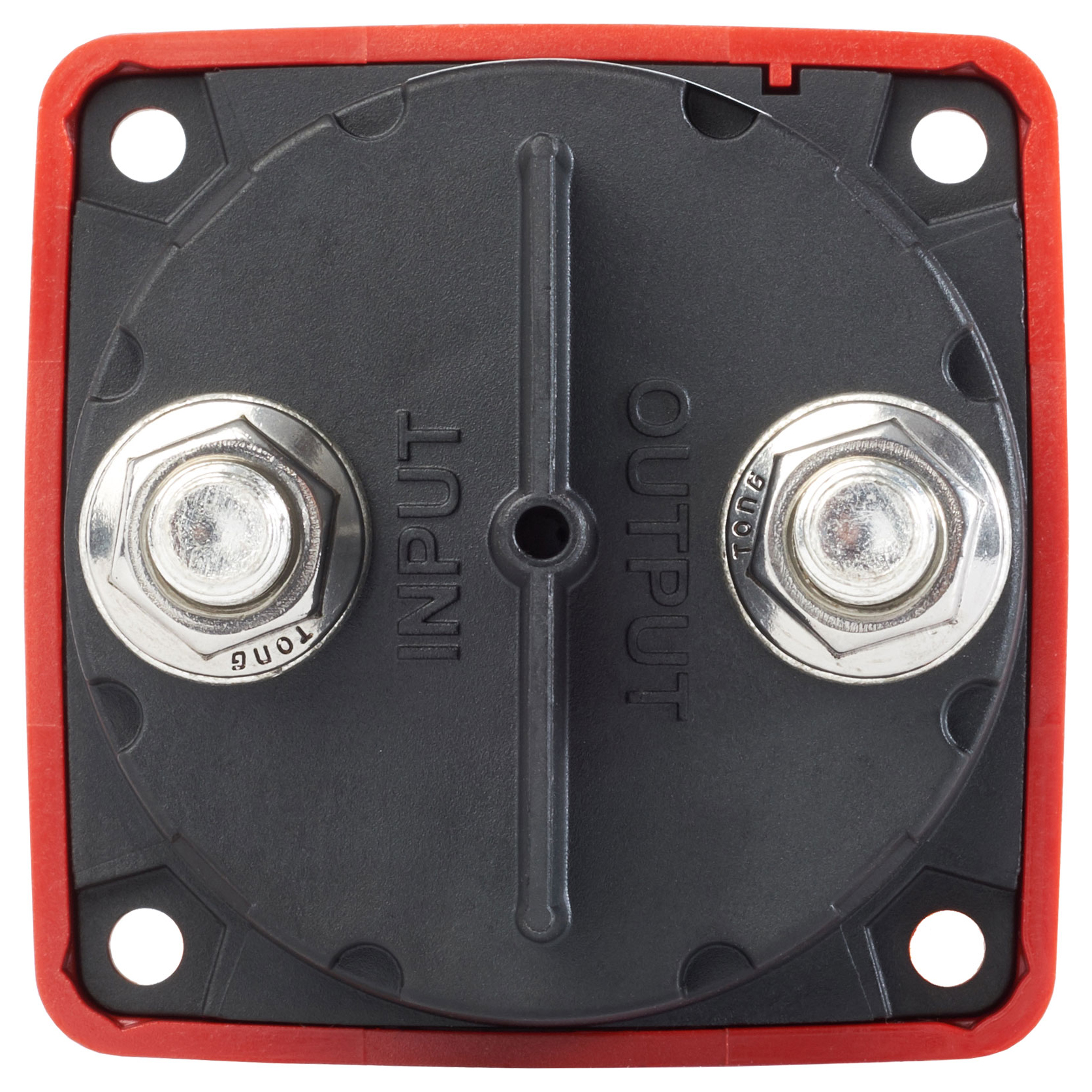

Its case design gives you three options for mounting, surface, front panel, or rear panel mounting. Rear contacts are protected thanks to its isolated cover with a snap-on section. Equipped with tin-plated copper studs which give maximum conductivity and makes its corrosion resistant.

Specifications

• Switch Type                                                   Single Circuit ON-OFF
• Color                                                              Red
• Switch Positions                                            2
• Battery Combine                                           No
• Alternator Field Disconnect                           No
• Maximum Voltage                                         48V DC
• Terminal Stud Torque                                   120 in-lb (13.56 Nm)
• Continuous Rating                                         300A
• Intermittent Rating                                         500A (5 min)
• Cranking Rating 30 sec                                 900A
• Battery Inputs                                                1
• Cable Clearance For 4/0 AWG Cables          1.12in (28.45 mm)
• Cable Size to Meet Ratings                           4/0 AWG (120mm²)
• Mounting Holes                                              Accept #10 Screw
• Terminal Stud Size                                        3/8" - 16 (M10)
• Weight                                                           0.65lb (0.29 kg)

Practical and simple to install
