UMC-1 USB to MeterBus Adaptor with RJ-11 and USB Cables

COMMUNICATEDIRECTLY WITH YOUR MORNINGSTAR SOLAR CONTROLLER OR INVERTER USING THE USB METERBUS ADAPTER UMC-1!
The USB MeterBus Adapter (model: UMC-1) converts the Morningstar MeterBus RJ-11 electrical interface to a standard USB 2.0 interface. This allows communication between a PC and Morningstar charge controllers or inverters that have a MeterBus connection:

• A PC running Morningstar's MS View software or any other compatible software
• A serial enabled device such as an internet gateway
• Another MODBUS enabled hardware device at the site that needs to access solar system information, such as the Sunsaver MPPT, SunSaver DUO, and SureSine products

ENSURING TIMELY ACCESS TO DATA AT ALL TIMES
Establishing a communications link enables the monitoring or logging of data from the controller or inverter as well as the customizing of any user-adjustable settings. The MSC makes available a wide variety of data stored in Morningstar's products such as (may vary according to product):

• Battery Voltage (including minimum and maximum)
• Solar charge current to the battery
• Load current from the battery
• Accumulated solar and load amp hours
• Charge stage
• Errors and alarms
• Local and battery temperature
• Data logging files

COMPATIBILITY WITH A VARIETY OF EQUIPMENT
All data is transmitted in the form of MODBUS protocol. This industry standard was chosen for a high level of compatibility with a variety of equipment. Each Morningstar product has its own data specification (see our website for full details).

INCLUDES

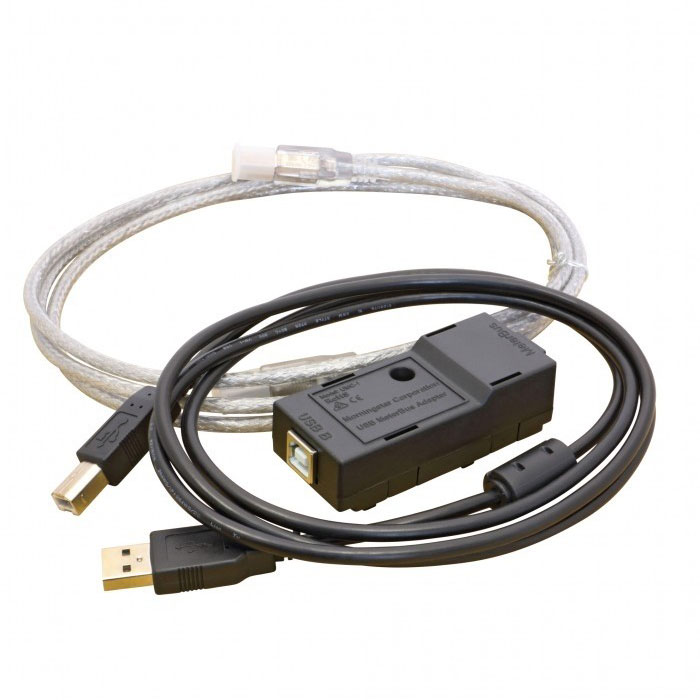

The UMC-1 is sold as a kit that includes the following:
* PC Meterbus Adapter
* USB B to USB A cable : 1 meter (3.3 feet)
* RJ-11 cable with connectors: 1 meter (3.3 feet)
