MBT-1 ZTS Pulse Load Multi Battery Tester

20-221-10002

Prix détail / Retail Price
CA $194.95
Ecofrais inclus / EcoFees included
0.000
Statut d'inventaire / Inventory Status
Article inventorié / Stocked Item

Description

Description

MBT-1 BATTERY TESTER – 30 TYPES



Test all your batteries on the same device and obtain a precise result in a few seconds! The MBT-1 is an electronic battery tester that allows the testing of more than 30 types of batteries such as the AA’s, button cell, lithium photo batteries and also Li-Ion batteries! It’s made for the rechargeable and non rechargeable batteries ranging from 1.2 to 12 Volts.



EASY TO USE – NO SWITCHES OR SETTINGS

Usually battery testers are not very user friendly. We must know the codes and types of batteries in order to use them and make the necessary settings to get a good result.

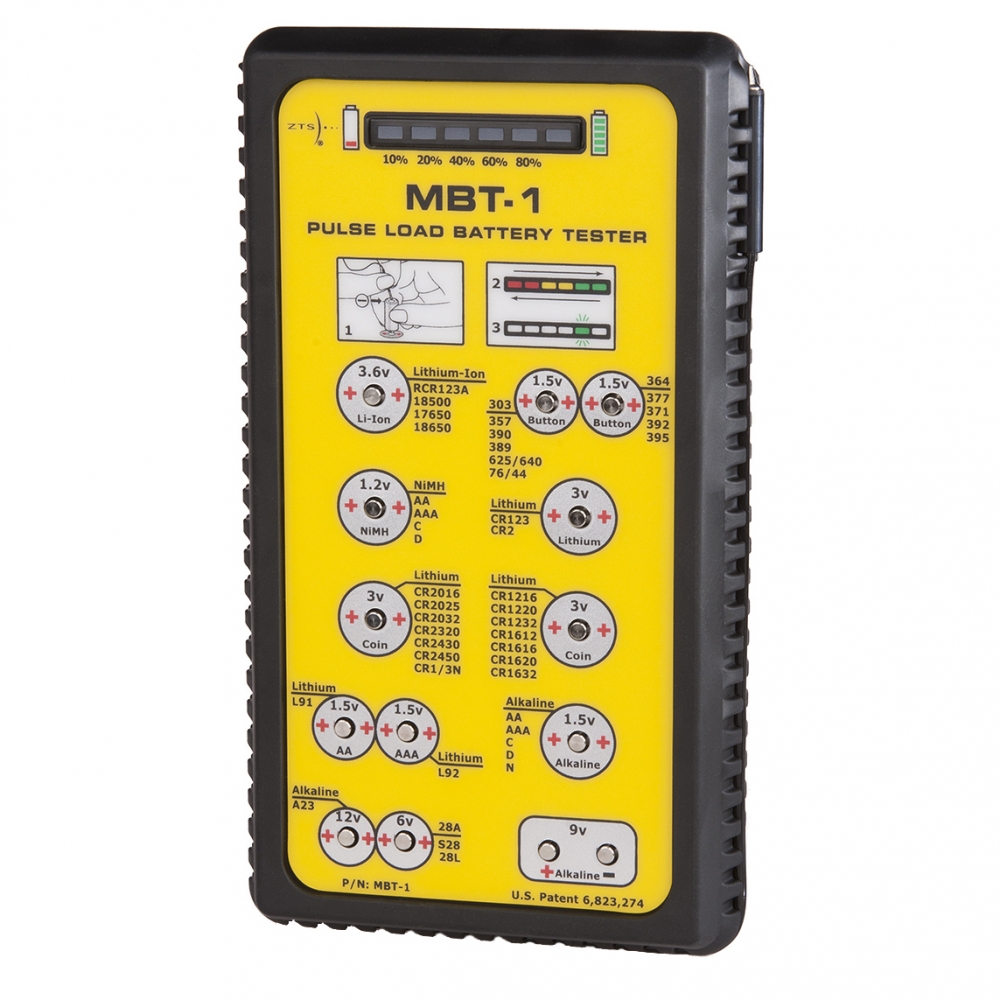

The MTB-1 is easy to use. Place the battery at the indicated area that is well illustrated by the shape and name of the battery, and then connect the testing cord to the battery. The MBT-1 has a patented, high accuracy pulse load test. Once the automatic test completed, the leftover percentage on the battery is shown by the LED bar display. Not only is it simple to use, the test result is easy to understand, i.e.: from 0 to 100%.

- The type of battery is clearly indicated near each contact.

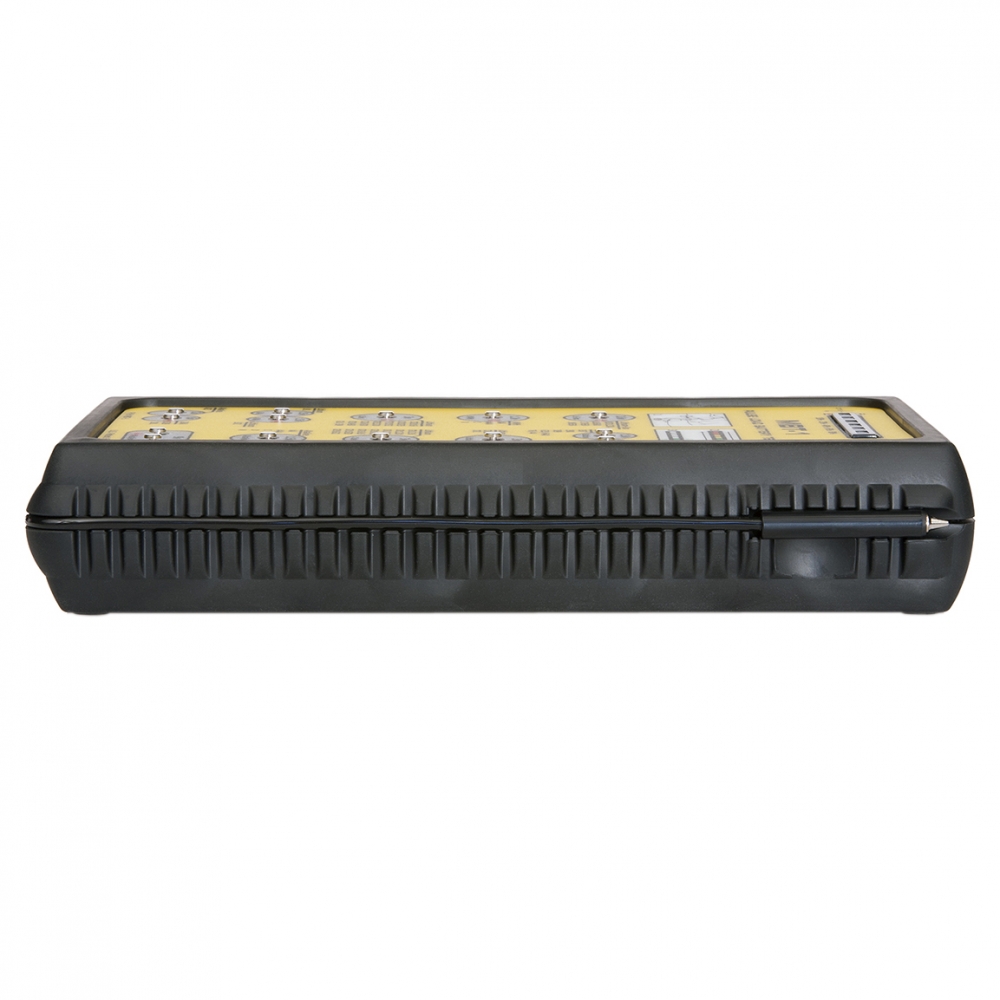

- The testing lead is attached to the tester and is stored in seam on the side of the device.

- The MBT-1 is protected by an anti-shock resistant case.



HIGH ACCURACY PULSE LOAD TEST

Identify quickly and easily the weak or malfunctioning batteries thanks to this electronic tester. The majority of battery testers test from internal resistance or evaluates the voltage status of the battery.   The MBT-1 measures the batteries’ performance through predefined computerized profiles (S.O.C. – State of Charge) for more than 30 types of batteries for high precision results.

Functions with: 4 AA batteries

Bar display: 6 LED - green, yellow and red.

Pulse load Test: The magnitude varies according to the battery type.

Test duration: 2-3 seconds, varies according to the battery.

Contact terminals: Nickel-plated brass for high conductivity and durability.

Test lead: Flexible wire, 18AWG plastic coated.

Dimensions: 8 x 4.5 x 1.25 inches.

Weight: 14.5 ounces / 400g

Specification

Specification

Marque / Brand
ZTS
Hauteur / Height
1.25" / 31.8mm
Garantie / Warranty
12 mois
12 months
Largeur / Width
4.50" / 114mm
Longueur / Length
8" / 203mm
Numéro de pièce/modèle / Part/Model Number
MBT-1
Poids / Weight (kg)
0.4000
